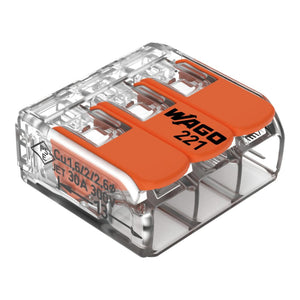

Wago 221-613 Box of 30 Compact splicing connector
Sku:
150-221-613
- Regular Price
- $24.76
- Sale Price
- $24.76
- Regular Price
Sold Out
- Unit Price
- per
COMPACT splicing connector; 3-conductor; with operating levers; 10 AWG to 20 AWG; transparent housing
IEC Approvals
| Ratings per | EN 60664 |
| Nominal voltage (II/2) | 450V |
| Rated surge voltage (II/2) | 4kV |
| Rated current | 41A |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
UL Approvals
| Approvals per | UL 486C |
| Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 30A |
Connection data
| Total number of connection points | 3 |
| Total number of potentials | 1 |
Connection 1
| Connection technology | CAGE CLAMP® |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Nominal cross-section | 6 mm² |
| Solid conductor | 0.5 … 6 mm² / 20 … 10 AWG |
Physical data
| Width | 22.9 mm / 0.902 inch |
| Height | 10.1 mm / 0.398 inch |
| Depth | 21.1 mm / 0.831 inch |
