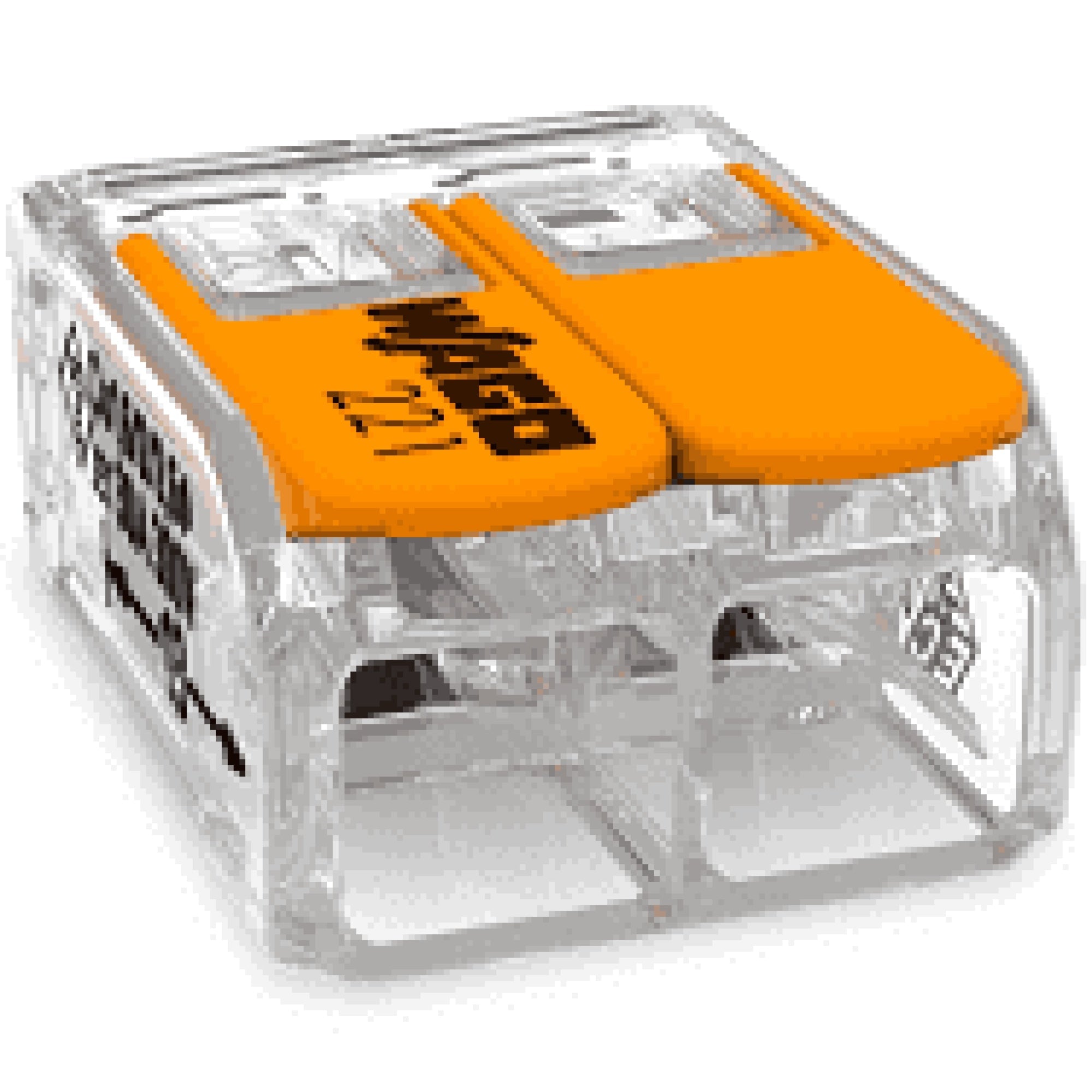

Wago 221-612 Box of 50 Compact splicing connector

  • $24.95


COMPACT splicing connector; 2-conductor; with operating levers; 10 AWG to 20 AWG; transparent housing

Ratings per EN 60664
Nominal voltage (II/2) 450V
Rated surge voltage (II/2) 4kV
Rated current 41A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2
UL Approvals
Approvals per UL 486C
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 30A
Connection data
Total number of connection points 2
Total number of potentials 1
Connection 1
Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 6 mm²
Solid conductor

0.5 … 6 mm² / 20 … 10 AW

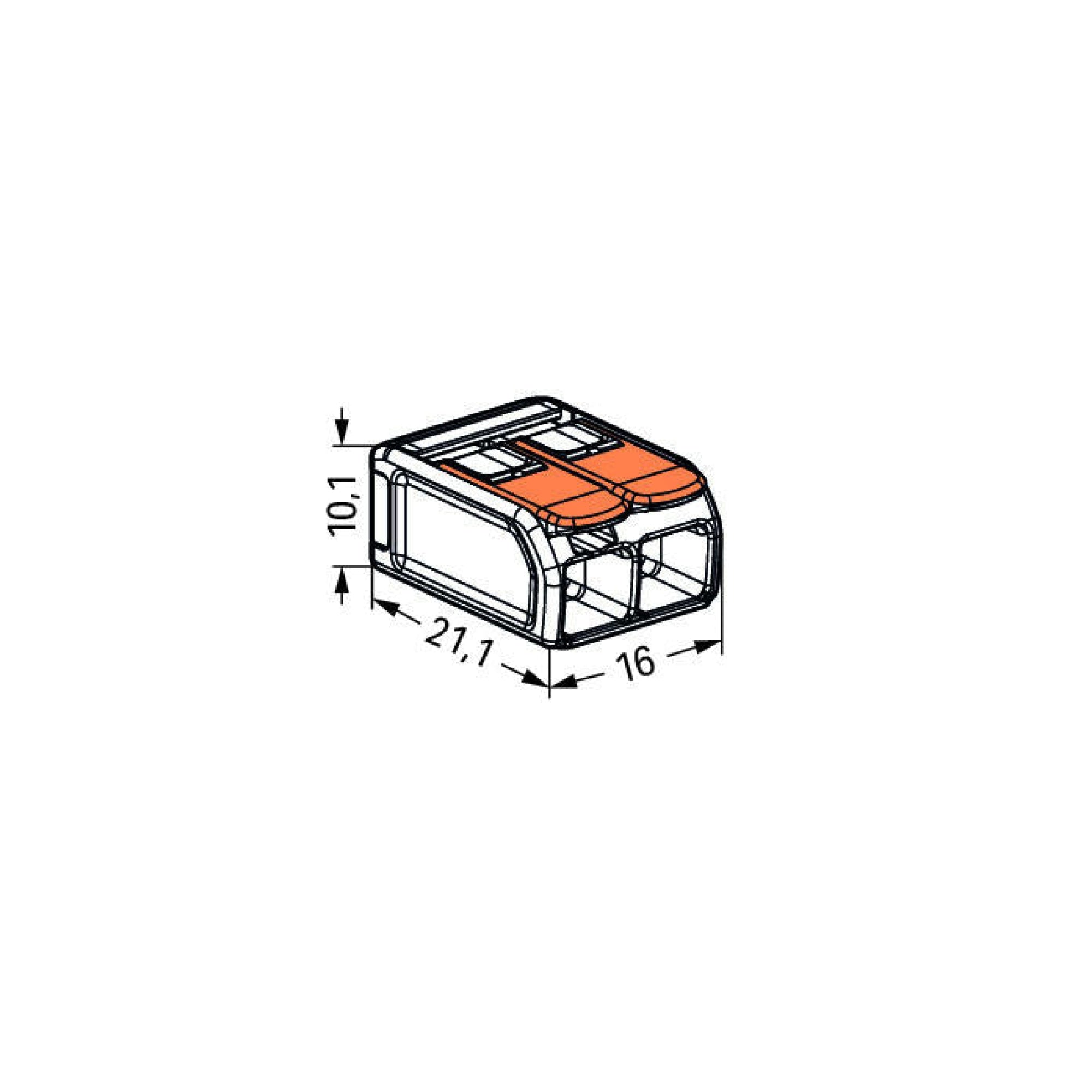

Width 16 mm / 0.63 inch
Height 10.1 mm / 0.398 inch
Depth 21.1 mm / 0.831 inch
